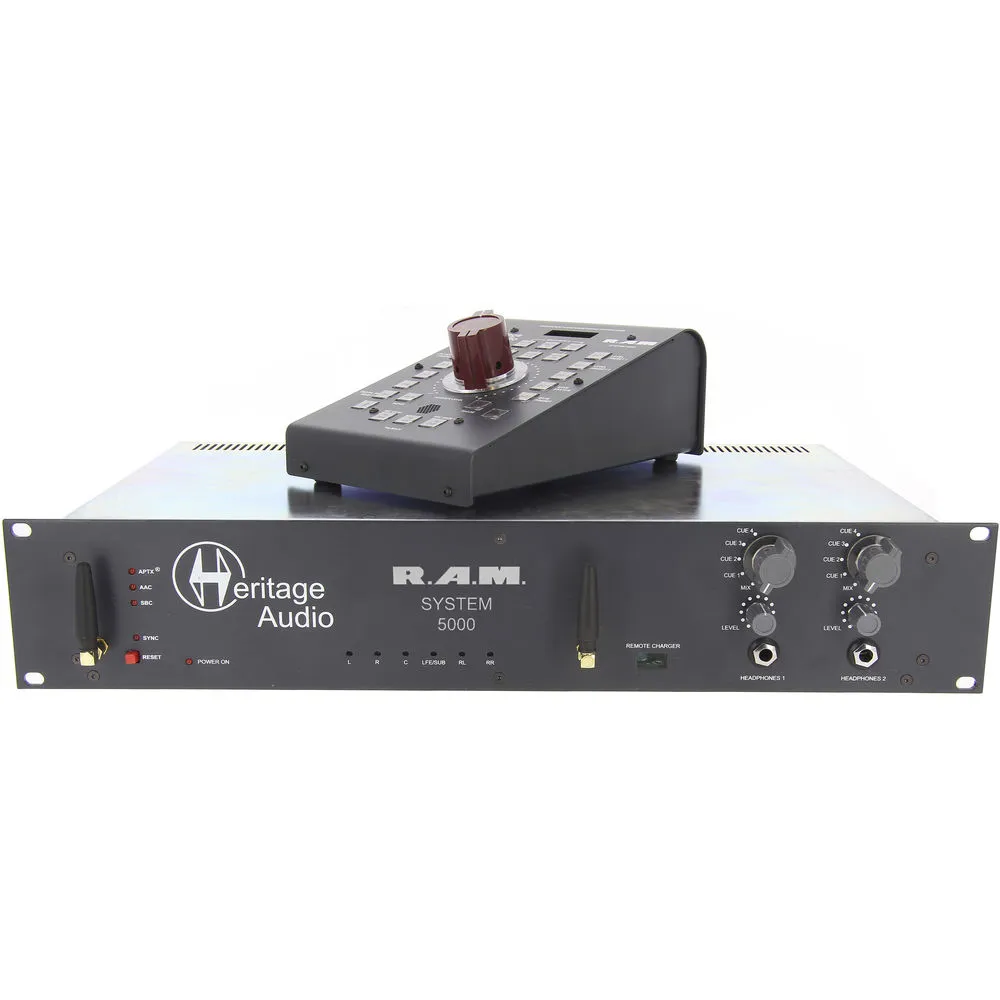

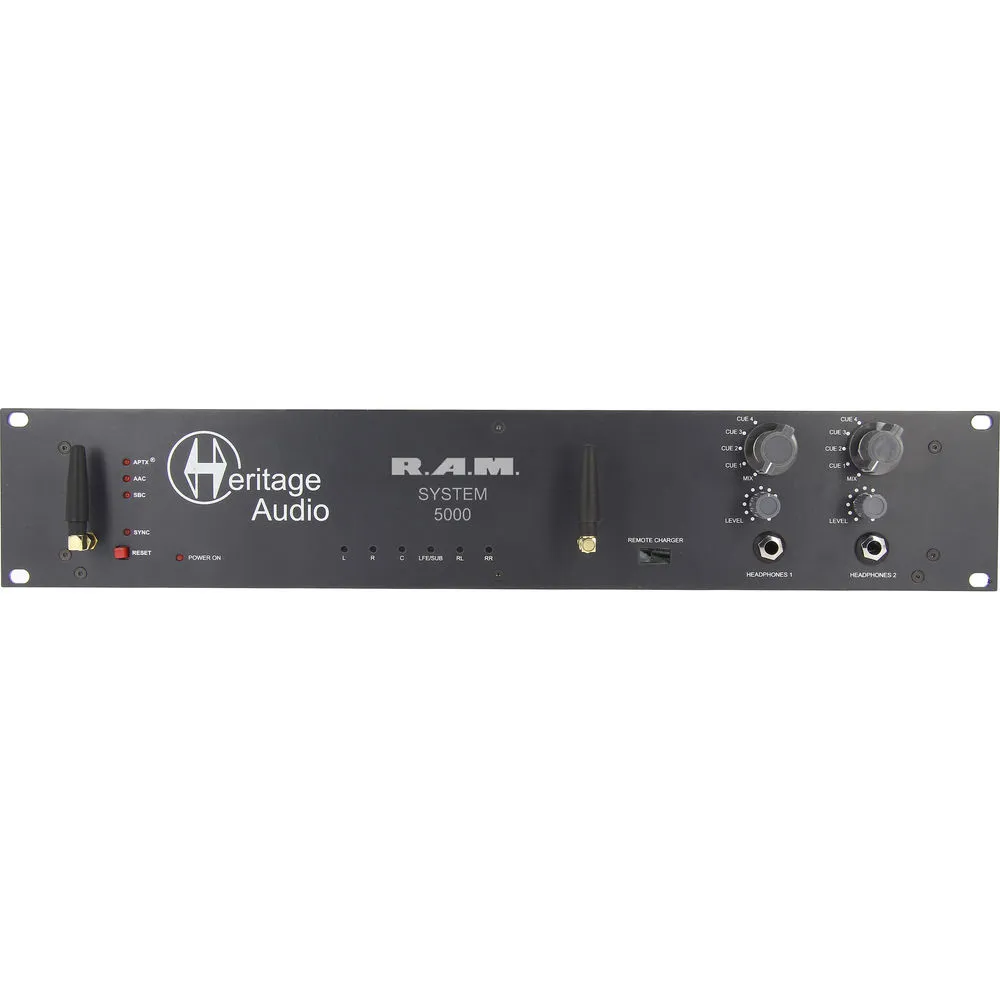

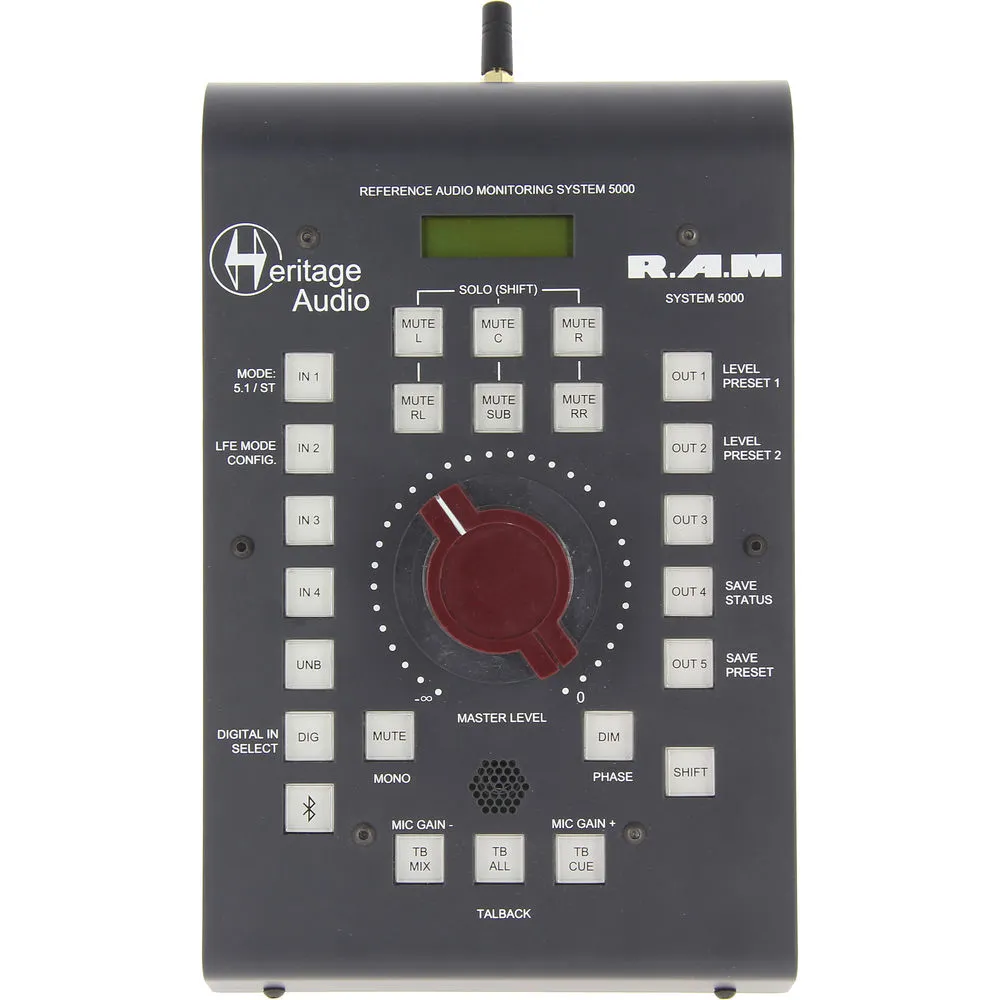

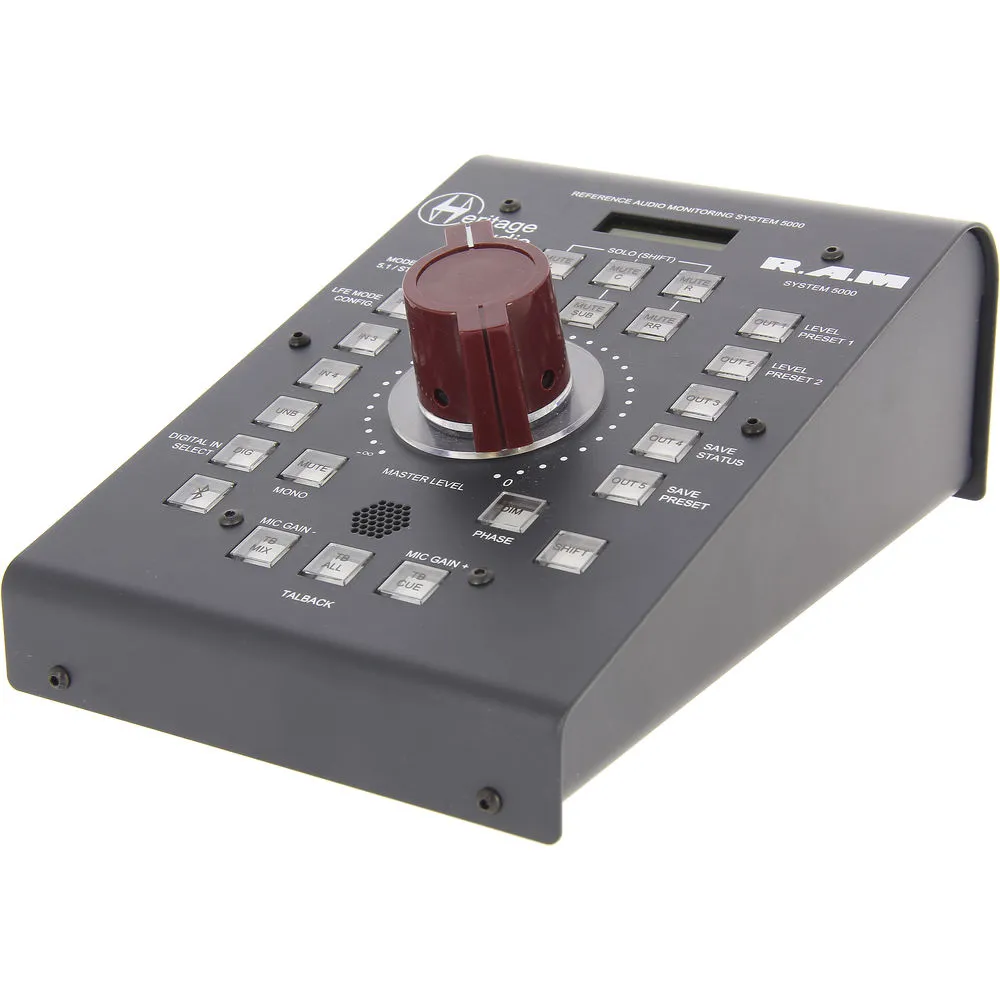

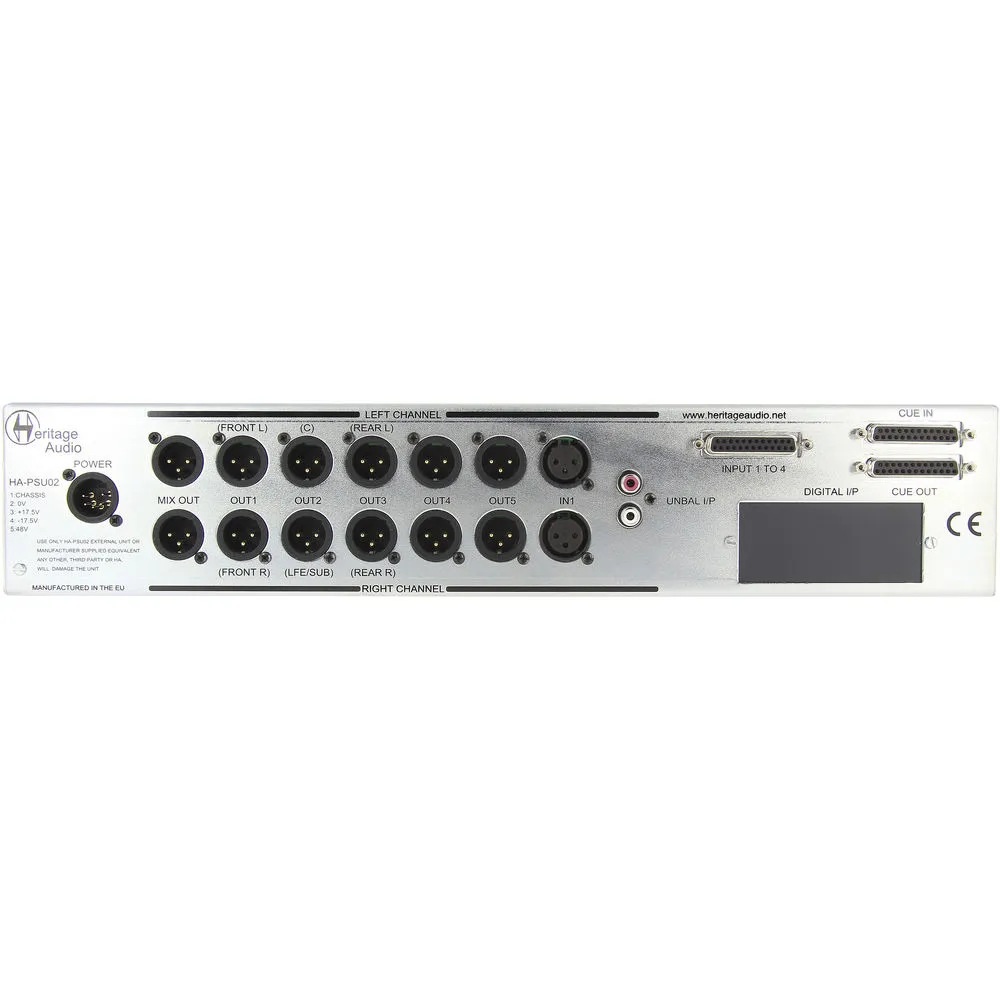

The RAM System 5000 5.1 Rackmount Monitoring System from Heritage Audio is a professional 5.1 ready monitor controller in a convenient split format. With its matrix of inputs and outputs, covering balanced and unbalanced analog, all common digital formats on a state of the art Wolfson DAC, and the innovative professional quality HA Bluetooth technology, the System 5000 will cover all the monitoring needs of the most demanding professional facilities. The level control is taken care of by means of microprocessor controlled gold-plated relays, giving a resolution of 64 dB of attenuation in 1 dB steps. Keeping active electronics to a minimum, the attenuator is buffered using premium Burr Brown circuitry for negligible coloration and no noise. Headphone monitoring is as critical as main speaker is. The RAM System 5000 employs very high current drivers in a diamond buffer configuration, which can drive any headphones to very high levels without coloration or noise. It has two amplifiers individually configurable to follow any of the CUE sends or the active input (MIX). • Consists of a wireless remote and a main rackmount unit • Illuminated engraved buttons • Configurable for 5.1 or stereo use • 4 pairs of balanced 4 dBu analog inputs in stereo mode • Wolfon WM8741 24 bit/192 kHz DAC, selectable between AES/EBU, SPDIF, and Toslink • Bluetooth pro audio quality input for easy mobile device integration • Four pairs of CUE inputs on DSUB connectors, for making specific cue mixes • Five pairs of stereo outputs in stereo mode • Independent MIX output, which follows input, pre-fader • Independent subwoofer output for easily sharing it between different speaker pairs • Mute/Solo functions for all individual speakers • Two user assignable preset levels for easy recalling of common settings • Mute, Dim, Mono, and Phase Reverse functions • Two high current, diamond buffer based, headphone amplifiers • Remote includes a long-life battery, rechargeable via USB cable • Main unit includes a charging dock
